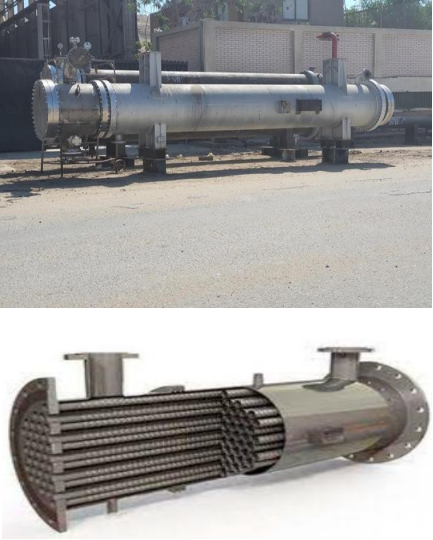

The Shell and Tube heat exchanger is a non-fired pressure system consisting of two separate pressure chambers (shell chamber and tube chamber). Separated by the internal tube wall, two media flow past one another with such alignment that, if there is a temperature difference, they will mutually exchange heat without mixing in the process.
A Multi-tube steam heat exchanger consists of a series of tubes contained within a steam pressure shell. Steam is delivered to the shell and is passed around the tube bundles. Heat is conducted through the tube bundles into the flowing well effluent.
Applications
- Offshore / onshore well testing
- Heavy oil wells
- High rate gas testing
Features and Benefits
- Integral automatic temperature control
- Combines the latest adjustable choke technology
- Electronic monitoring of process parameters available
- Complies with applicable industry standards
- Prevents hydrate formation
- Reduces oil viscosity for improved burner efficiency
- Improves separation of oil/water emulsions
Technical Specifications
| Design Data | Shell Side | Tube Side |
|---|---|---|
| Design Pressure | 30 Bar | 140 Bar |
| Design Temperature | -20°C / 205°C | -20°C / 205°C |
| Inlet Flange | 6” 300# SA-105N | 6” 1500# SA 350 LF2 |
| Outlet Flange | 3” 300# SA-105N | 6” 1500# SA 350 LF2 |
| Relief Valve Con | 6” 300# SA-105N | N/A |
| No. of Passes | 1 | 1 |
| Material | SA-106 B | SA-334 6 SMLS |
| Weight | Dry: 7580 kg Full of Water: 7870 kg | – |
| Design Code | ASME VIII Div.1 ANSI B31.3, API 6A, API 660 DNV 2.7-1 (skid and frame), NACE MR-10-75 | – |
