Apex

DAQ System

Apex , Well Testing has developed its own set of fabrication specifications to ensure that equipment used by Apex Petroleum Services, Well Testing meets or exceeds all local requirements. Apex Petroleum Services, Well Testing specifications are primarily based on the following worldwide recognised specifications:

Equipment Design and Fabrication Specifications

  • API Spec 6A – Specification for Valves and Wellhead Equipment
  • ASME VIII For construction of pressure vessels , Div 1&2
  • API RP 14C – Recommended Practice for Analysis, Design, Installation, and Testing of Basic Surface Safety Systems on Offshore Production Platforms
  • NACE MR-01-75
  • Product Specification Level (PSL) 3
  • Material Class DD
  • Temperature Class P&X (-20° F to +350° F)
Talk to an expert

DAQ System

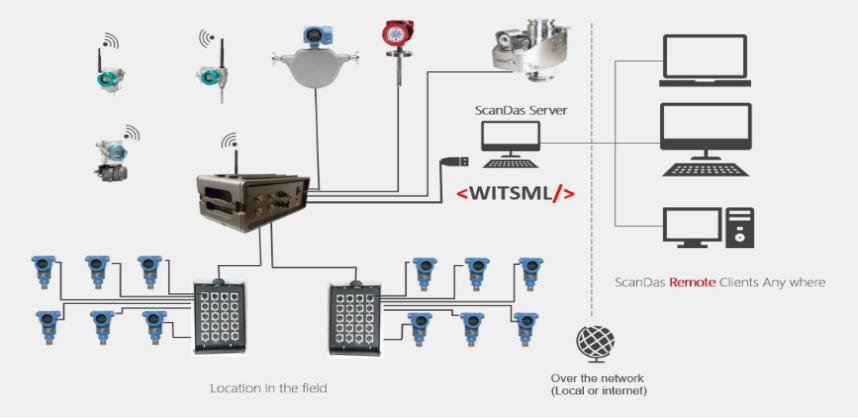

Apex uses the Smart Hybrid logger, the most advanced and innovative data acquisition logger on the market, combining the best of both worlds: wired and wireless. Smart Hybrid can read analog transmitters, digital transmitters, Coriolis meters, water cut meters, wet gas meters, multiphase meters, flow meters, and more.

The logger has redundant channels and a built-in HART Communicator to set up the transmitters directly within the software, eliminating the need for complicated external setup or an expensive HART Communicator.

Key Features:

  • Smart Hybrid Loggers are both wired and wireless
  • Supports up to 200 wireless devices & 80 wired devices
  • No calibration is needed for connected sensors (wired or wireless)
  • Multiple variables are read from each transmitter
  • Use your legacy transmitters fitted with wireless adapters
  • Can read Coriolis, multiphase meters, WC meters, etc.
  • Integrated HART Communicator
  • Analog and digital channels
  • No software calibration is needed for connected sensors (wired or wireless)
  • Can be used with any third-party software

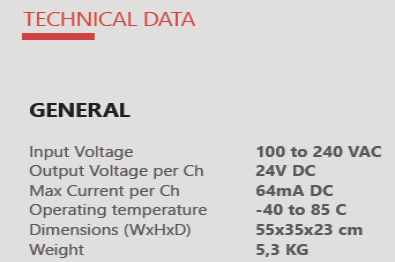

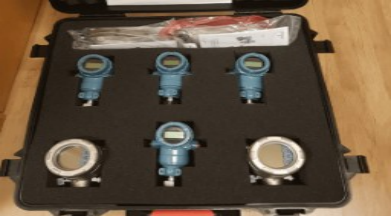

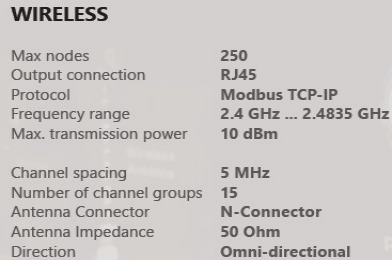

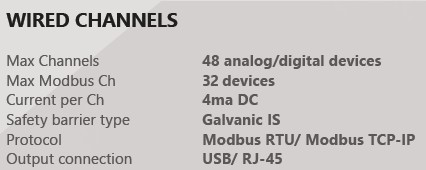

Smart Hybrid Logger

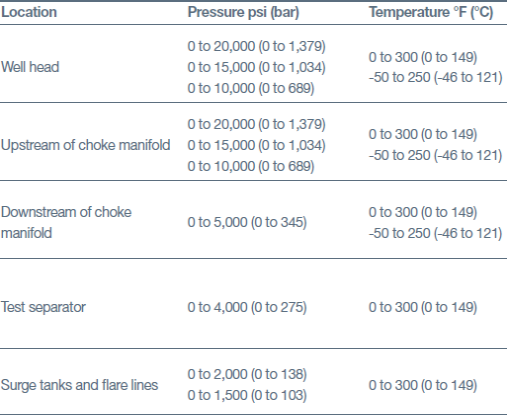

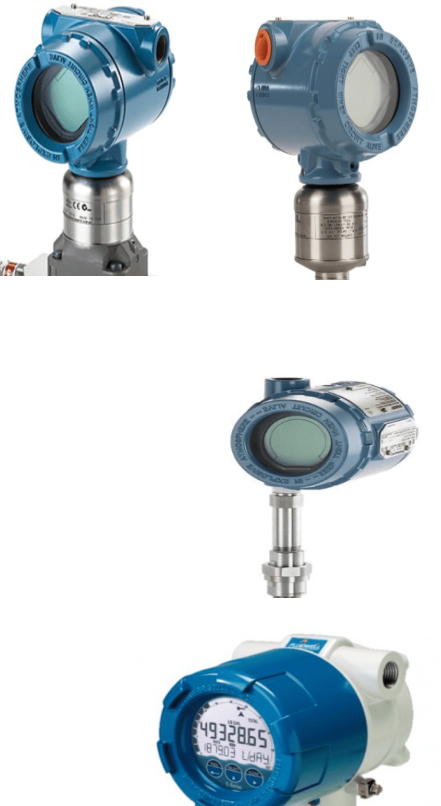

Sensors Location and Technical Specifications
