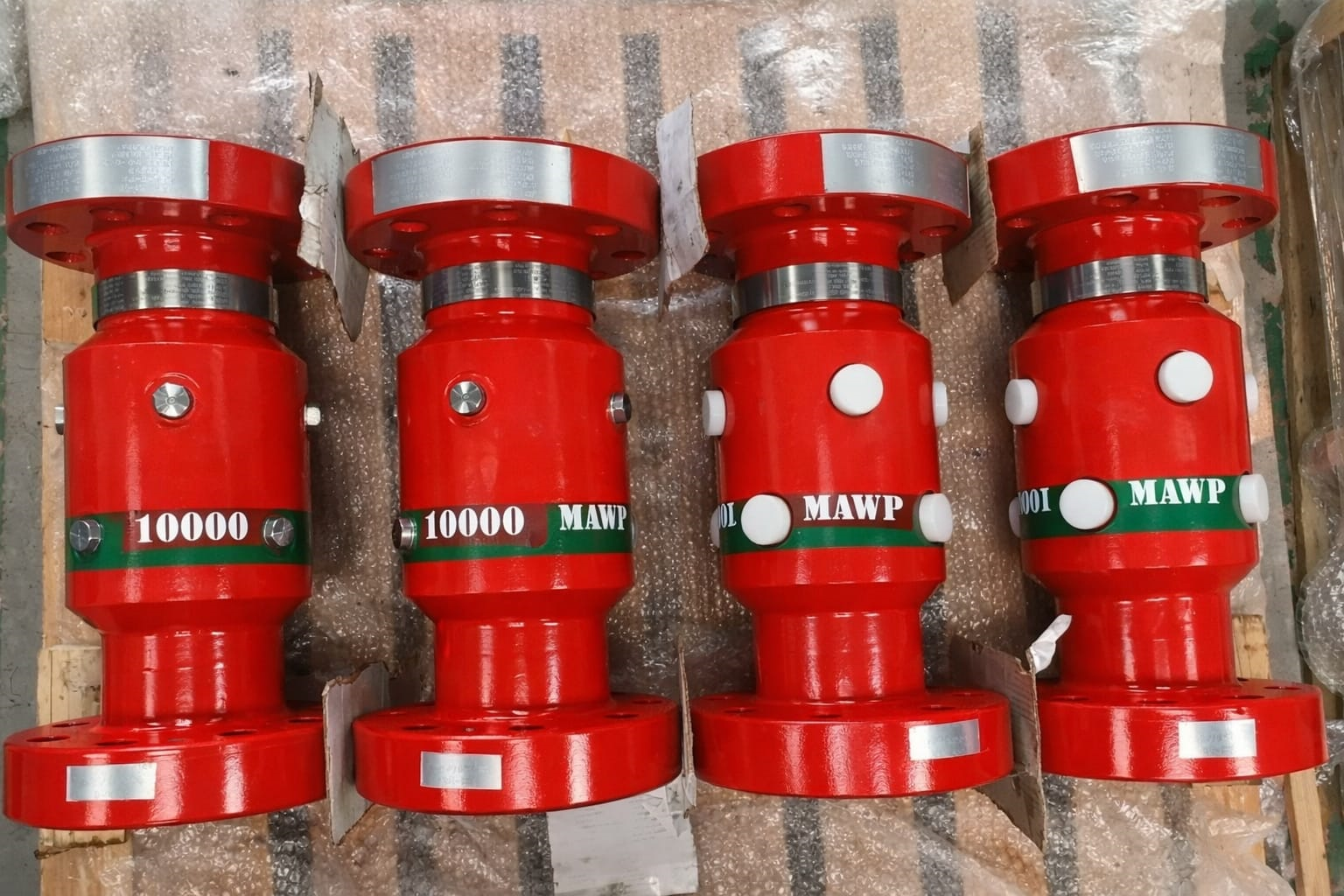

The Data Header is a piping component with several ports along or around its length that provide access to the flow stream for sampling, monitoring of pressure and temperature, sand/silt monitoring, and chemical injection.
It is usually mounted in the production flow path upstream and downstream of the surface choke manifold.
Features and Benefits:
- Ports with valves to monitor flowline pressure, inject chemicals, obtain samples, or monitor sand production.
- Ports with thermowells to monitor flowline temperature or to insert corrosion probes.
- Can be attached to the inlet of the surface choke manifold.
- Meets applicable industry standards (API 6A) and can be third party certified as required.
Operation

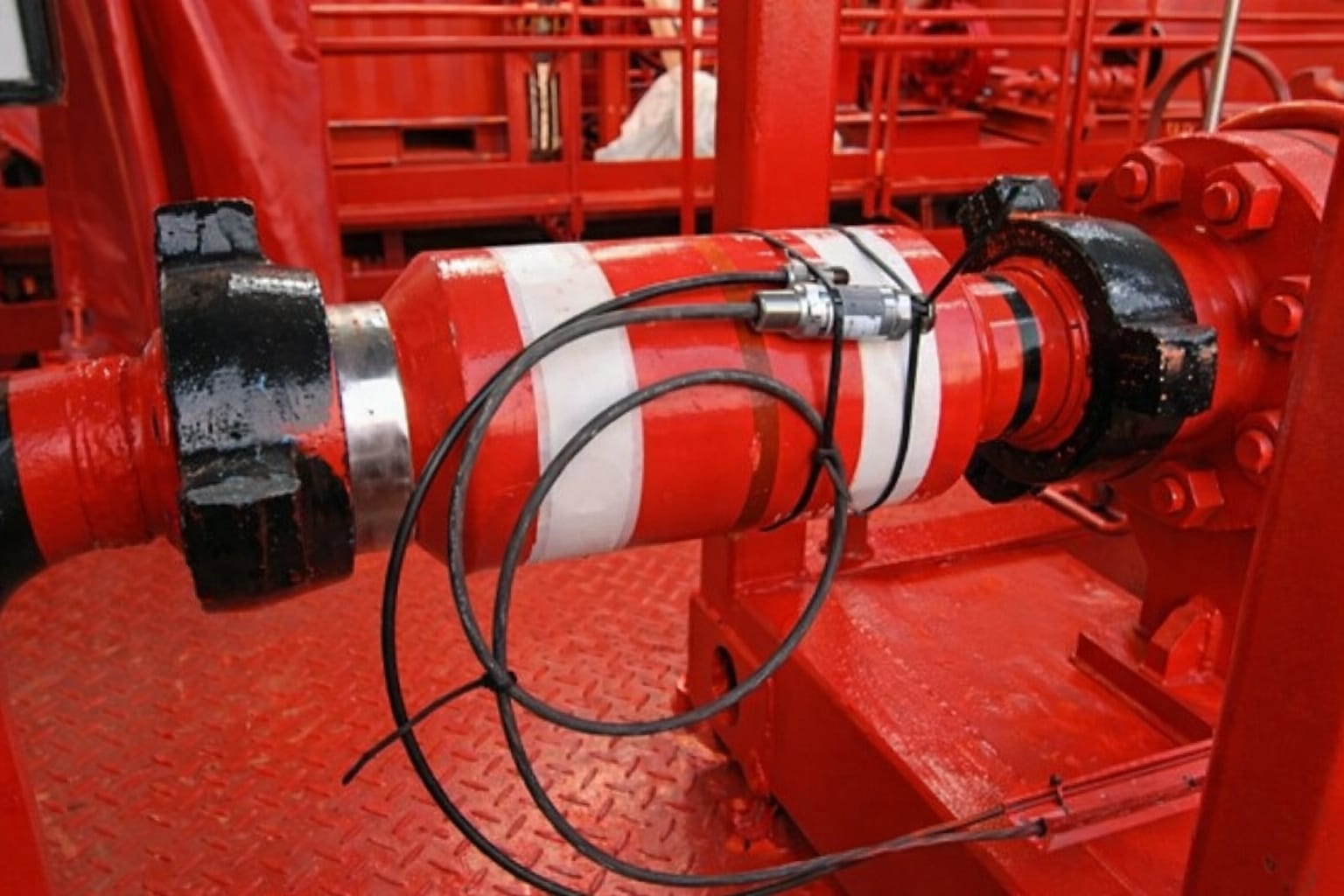

The data header is normally mounted in the production flow path upstream of the surface choke manifold. The data header is designed with lateral fittings providing access to monitor the flow as it leaves the wellhead.
Data Header Specifications

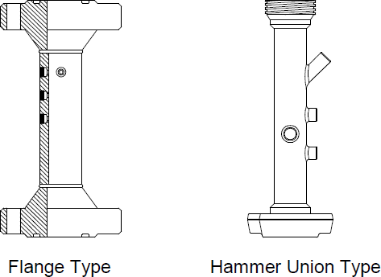

| Size | Working Pressure (psi) | End Connection | Length (in) | Weight (lb) |
|---|---|---|---|---|
| 2 | 10,000 | Fig 1502 Hammer Union (Wing and Thread) | 0 | 25 |
| 2 | 15,000 | Fig 2202 Hammer Union (Wing and Thread) | 4 | |
| 3 | 10,000 | Fig 1502 Hammer Union (Wing and Thread) | 30 | 00 |
| 3 | 15,000 | API 6A, Bx 154 Flange | 25 |
Meets requirements of NACE MR0175.
Transportation skid included.
Other sizes, configurations, and pressure ratings are available to meet most applications.
These ratings are guidelines only. For more information, contact your local Apex Petroleum Services representative.
