Flare Stack

Apex , Well Testing has developed its own set of fabrication specifications to ensure that equipment used by Apex Petroleum Services, Well Testing meets or exceeds all local requirements. Apex Petroleum Services, Well Testing specifications are primarily based on the following worldwide recognised specifications:

Equipment Design and Fabrication Specifications

  • API Spec 6A – Specification for Valves and Wellhead Equipment
  • ASME VIII For construction of pressure vessels , Div 1&2
  • API RP 14C – Recommended Practice for Analysis, Design, Installation, and Testing of Basic Surface Safety Systems on Offshore Production Platforms
  • NACE MR-01-75
  • Product Specification Level (PSL) 3
  • Material Class DD
  • Temperature Class P&X (-20° F to +350° F)
Talk to an expert

Flare Stack

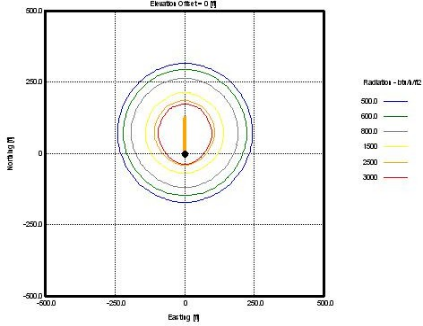

Flare gas stacks, also known as flue gas stacks or exhaust stacks, are tall, cylindrical structures used to discharge waste gases from industrial processes into the atmosphere. In surface well testing, gas flaring is conducted by 40 ft, 60 ft, or 90 ft flare stacks. Flare systems are available in 3”, 4”, 6” & 8” in diameter, which can be mobile and installed on a trailer. Trailer-mounted gas flares are very convenient to be mobilized, installed, and operated. Gas flaring systems consist of multiple pilot gas lines, automatic ignition system, flare tube, flare tip, and other components necessary for safe and reliable operation.

Applications:

  • Onshore well testing and flow back
  • Petroleum refineries, chemical plants, and natural gas processing plants
  • Production projects

Features and Benefits:

  • Skid or trailer mounted
  • Integral ignition system with automatic re-ignition
  • Multiple lines configuration
  • NACE MR0175
Flare Stack

Flare Stack Specifications

SpecificationSize
Main Stack line8” 150#RF flange
Secondary stack line6” 150#RF flange
Auxiliary line2” 150#RF flange
Ignition gas supply line1”
Inlet connections6” 206 female
Flow Rate (max)30 to 50 MMscfd
Meets requirements of NACE MR0175.
Working temperature (°F/°C)-20 to 350 (-29 to 177)

Other sizes, configurations, and pressure ratings are available to meet most applications. These ratings are guidelines only. For more information, consult your local Apex Petroleum Services representative.
