Frac Choke Manifold

Apex , Well Testing has developed its own set of fabrication specifications to ensure that equipment used by Apex Petroleum Services, Well Testing meets or exceeds all local requirements. Apex Petroleum Services, Well Testing specifications are primarily based on the following worldwide recognised specifications:

Equipment Design and Fabrication Specifications

  • API Spec 6A – Specification for Valves and Wellhead Equipment
  • ASME VIII For construction of pressure vessels , Div 1&2
  • API RP 14C – Recommended Practice for Analysis, Design, Installation, and Testing of Basic Surface Safety Systems on Offshore Production Platforms
  • NACE MR-01-75
  • Product Specification Level (PSL) 3
  • Material Class DD
  • Temperature Class P&X (-20° F to +350° F)
Talk to an expert

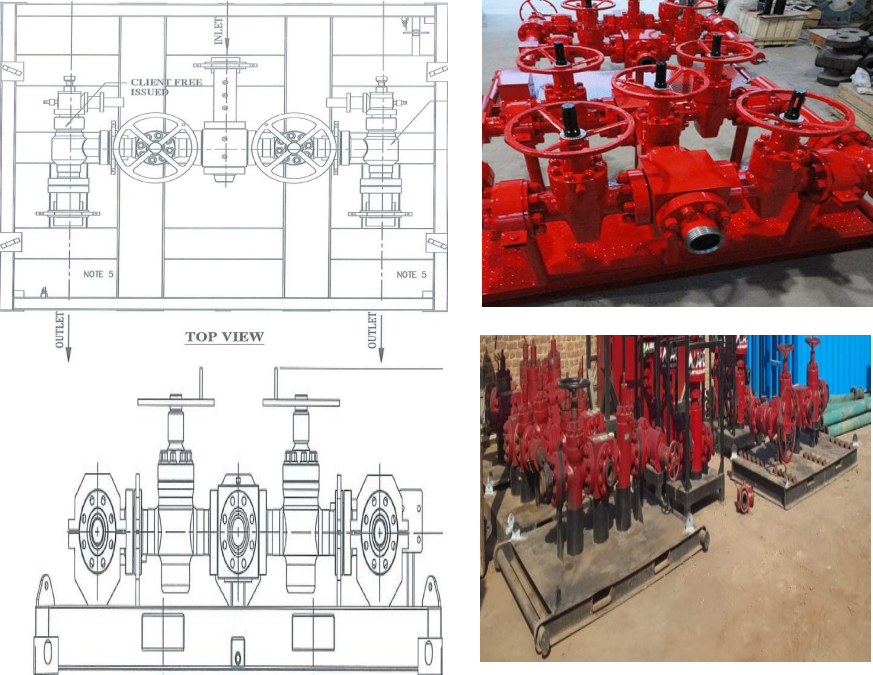

Frac Choke Manifold

TECHNICAL DETAILS
Design CodeAPI 61, NACE MR-01-175 , PSL 3
ServiceH2S
Pressure Rating5000 – 10000 PSI
Material ClassFor block , Spool , GATE : DD-NL
Temperature ClassP+U (-20 F to 250 F )
