Apex , Well Testing has developed its own set of fabrication specifications to ensure that equipment used by Apex Petroleum Services, Well Testing meets or exceeds all local requirements. Apex Petroleum Services, Well Testing specifications are primarily based on the following worldwide recognised specifications:

Equipment Design and Fabrication Specifications

  • API Spec 6A – Specification for Valves and Wellhead Equipment
  • ASME VIII For construction of pressure vessels , Div 1&2
  • API RP 14C – Recommended Practice for Analysis, Design, Installation, and Testing of Basic Surface Safety Systems on Offshore Production Platforms
  • NACE MR-01-75
  • Product Specification Level (PSL) 3
  • Material Class DD
  • Temperature Class P&X (-20° F to +350° F)
Talk to an expert

Knock Out Pot

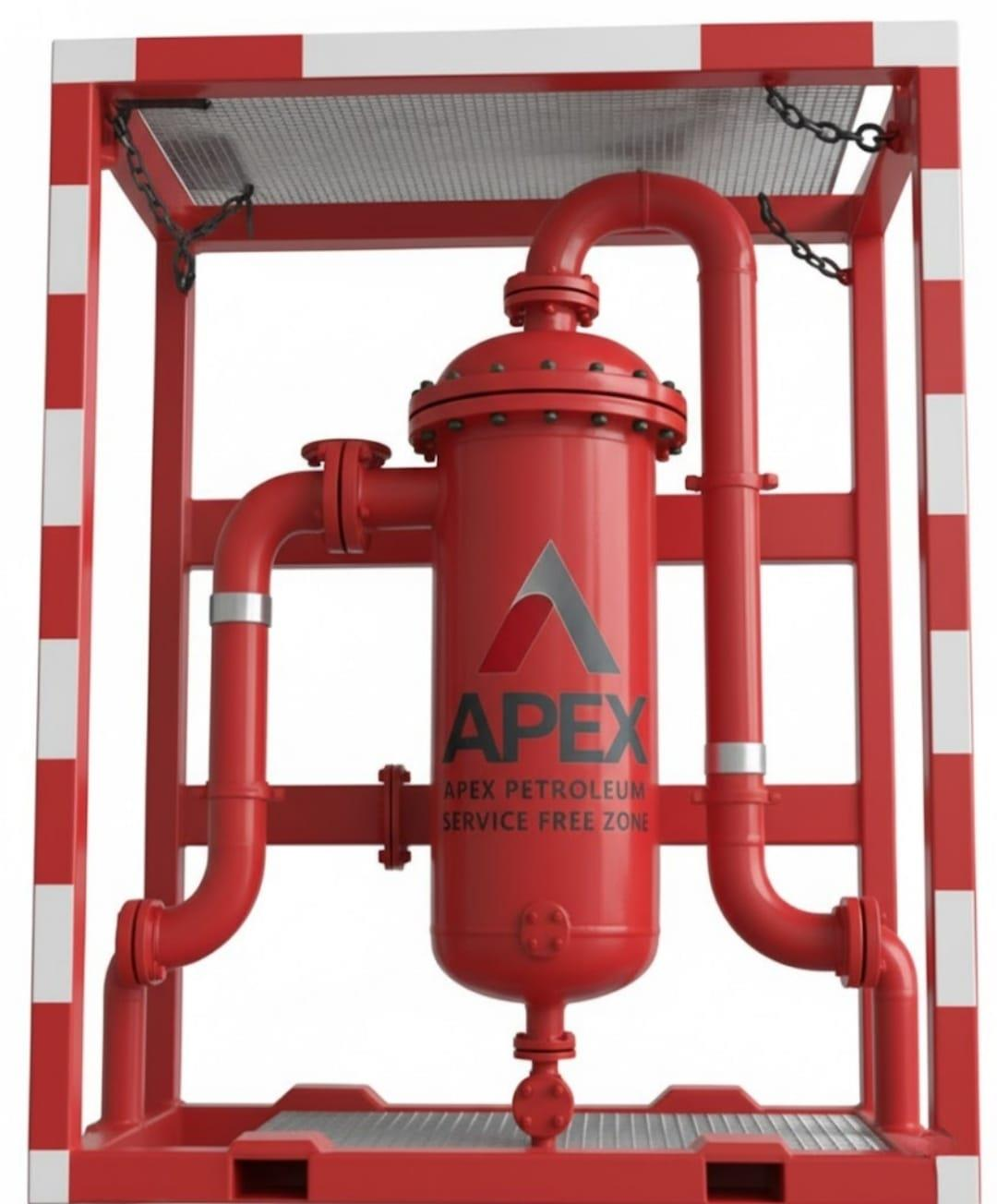

The Apex Knock Out Pot is engineered to effectively remove entrained liquid droplets from gas streams. Typically installed downstream of separators or on the vent lines of test tanks, this unit ensures the reliable capture of liquid carryover, safeguarding downstream equipment and enhancing process safety.

Featuring a tangential gas inlet, the vessel uses centrifugal force to separate liquids from the gas phase. The separated liquid collects at the bottom of the vessel and is discharged in a controlled manner via integrated drain systems.

Designed with operational flexibility in mind, the Knock Out Pot includes all essential inlet, outlet, and drain valves, as well as a safety relief device for overpressure protection. A convenient access hatch allows for internal inspection and removal of accumulated debris.

Available in a range of sizes and configurations, the Apex Knock Out Pot is tailored to meet specific flow rate requirements and varying volumes of entrained liquids, making it a dependable solution for both onshore and offshore applications.

Applications

Onshore and Offshore Well Testing

  • Production and In-line Flow Testing
  • Extended Well Test (EWT) Operations

Key Features

  • Designed for high-efficiency gas-liquid separation
  • Suitable for harsh operating environments
  • Compact, skid-mounted design for easy transport and installation
  • Available in a range of sizes and configurations to meet varying flow rates
  • Integrated safety relief systems and access hatches for easy inspection
  • Supports compliance with environmental and safety standards
  • Enables continuous operation with minimal downtime
  • Built to industry standards for reliable and durable performance
Knock Out Pot

Technical Specifications

Pressure rating psi (bar)1,440 (99)250 (17.23)
Temperature rating °F (°C)-20 to 129 (-29 to 54)-20 to 250 (-29 to 121)
Capacity bbl (US gallon)8 (335)16 (672)
Inlet connection4” fig 206 Hammer Union4” fig 206 Hammer Union
Relief outlet4” fig 206 Hammer Union4” fig 206 Hammer Union
Drain connection2” fig 206 Hammer Union2” fig 206 Hammer Union
Safety devicesPilot operated relief valve, high level alarmPilot operated relief valve, high level alarm
Skid (L x W x H) ft. (m)7.5 x 5.9 x 9.8 (2.3 x 1.8 x 3.0)7.8 x 5.9 x 12 (2.3 x 1.8 x 3.7)
Weight (dry) lbs (kgs)7,716 (3,500) 8,738 (3.800

Note: Designed and manufactured to ASME VIII sec 1 or PD5500 cat. 1, ASME B31.3 and NACE MR-01-75.

Other sizes and configurations are available to meet most applications, For more information contact your local Apex Petroleum Services representative
