Produced Water Treatment

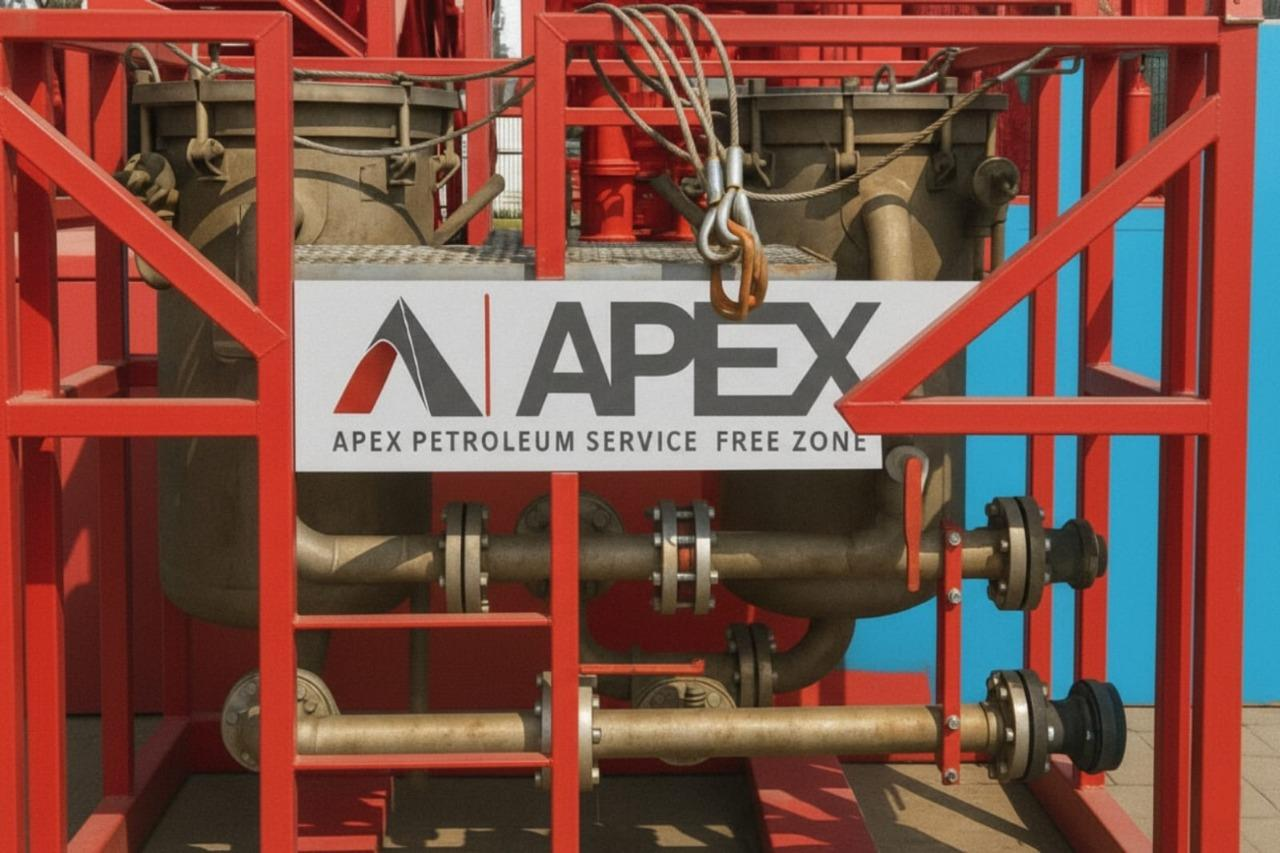

APEX’s advanced produced water treatment system is designed to efficiently remove oil from produced water during development well testing and clean-up operations. Water produced in these phases often contains stable oily emulsions that require effective treatment prior to safe environmental discharge.

Our system utilizes compact, skid-mounted vessels equipped with high-performance oil adsorption filter cartridges. These cartridges are engineered to handle a broad spectrum of process contaminants and can be arranged for either parallel or series operation based on the clean-up requirements.

Each vessel is capable of removing up to 72 kg of oil with a separation efficiency of 90–95%, achieving oil-in-water concentrations as low as 5 mg/l. The system’s performance is continuously monitored using an industry-leading oil content analyzer to ensure compliance and operational efficiency.

Applications:

  • Onshore and offshore oil and gas well testing and clean-up operations.

Key Features Include:

  • Compact Footprint – Skid-mounted for ease of transport and installation
  • High Separation Efficiency – Effectively handles difficult emulsions
  • Reduced Environmental Impact – Lowers discharge contaminants and minimizes chemical usage
  • Flexible Operation – Adaptable to varying process demands
  • Cost Efficiency – Reduces burden on facility systems and lowers overall water treatment costs

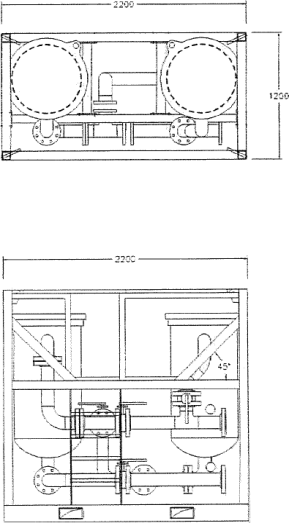

Technical Specifications

Design Press. psi (bar)Temp Rating °F (°C)ConnectionsMaterialsFlow CapacityOperating RangeInlet ConcentrationEfficiencyOutlet ConcentrationFilter Cartridges
100 (6.9)4 to 212 (-20 to 100)Inlet: 4” fig 206 hammer union, female
Outlet: 4” fig 206 hammer union, male
Drain: 1” NPT port		316 SS, vessels and piping4,770 bbl/day for 24 hours @ 100 mg/l oil-in-feed0 to 100% of flow range300 to 400 mg/l (recommended maximum 500 mg/l)90 to 95% (single stage operation)5 to 30 mg/l50 oil adsorption cartridges per vessel

Note: Designed and manufactured to ASME VIII Div 1, ANSI B31.3, NACE MR-01-75, SI 289, SI 913, EN 12079, BS 449. Other sizes and configurations are available to meet most applications. For more information, contact your local Apex Petroleum Services representative.
