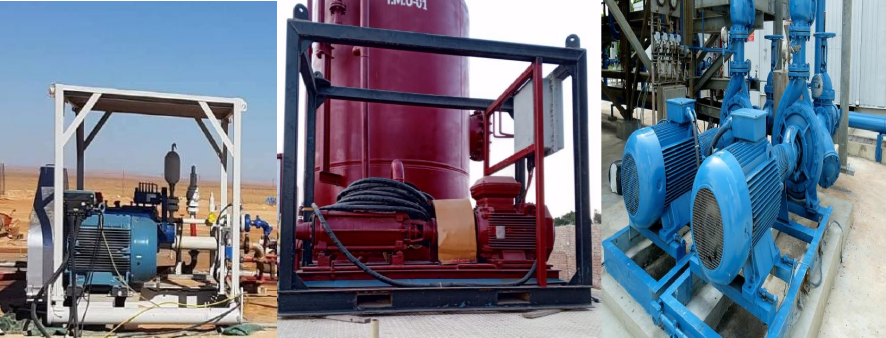

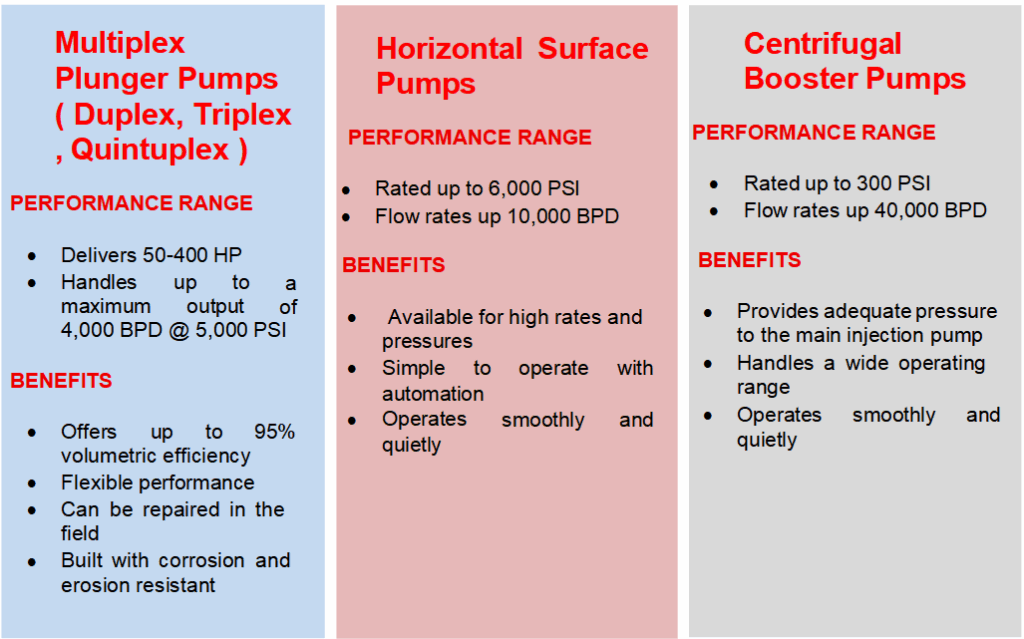

Apex provides a wide range of positive displacement pumps, multistage, and centrifugal booster pumps that meet the requirements of Oil and Gas Surface Transfer applications. Apex delivers optimized surface pumping systems designed for long-term reliability and operational efficiency across the oil and gas industry. Our pumping systems support virtually any fluid, pressure, and environment.
Key Benefits of Apex Surface Pump Solutions:
- Proven reliability in harsh onshore and offshore conditions
- Scalable systems for high-pressure and high-volume operations
- Robust design using anti-corrosive materials
- Full automation and safety integration
- Pre-tested components for streamlined deployment
- The flow rate of our pumps remains stable, even if the viscosity of your fluid is variable or your application requires fluctuations in pressure
- Lowest NPSH available (as low as 30 cm-1 ft)
- Effective conveyance for the handling of sand and suspended solids

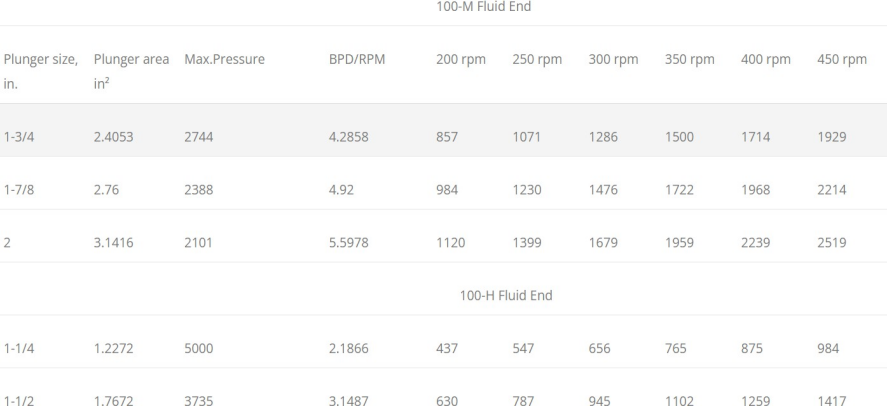

100 Horsepower Triplex Pump:
- Stroke Length: 4″
- Rated: 100 horsepower at 450 rpm
- Rated Plunger Load (lbs.): 6595 lbs
- M Fluid End:
- Suction: 3″ ANSI 150# FF
- Discharge: 1-1/2″ API 5000#
- RTJ H Fluid End:
- Suction: 3″ ANSI 300# FF
- Discharge: 1-1/2″ API 5000# RTJ

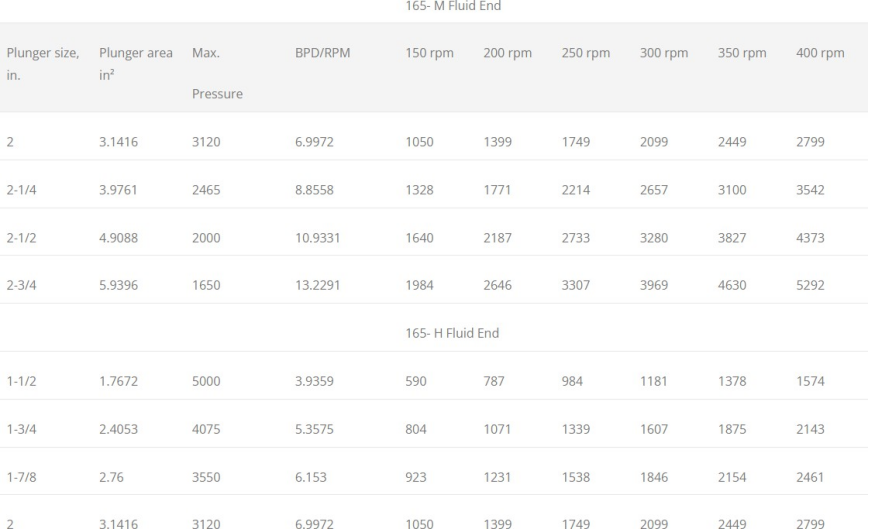

165 Horsepower Triplex Pump:
- Stroke Length: 5″
- Rated: 165 horsepower at 400 rpm
- Rated Plunger Load (lbs.): 9800 lbs
- M Fluid End:
- Suction: 4″ ANSI 150# FF
- Discharge: 2″ API 5000# RTJ
- H Fluid End:
- Suction: 3″ API 2000# RTJ
- Discharge: 2″ API 5000# RTJ

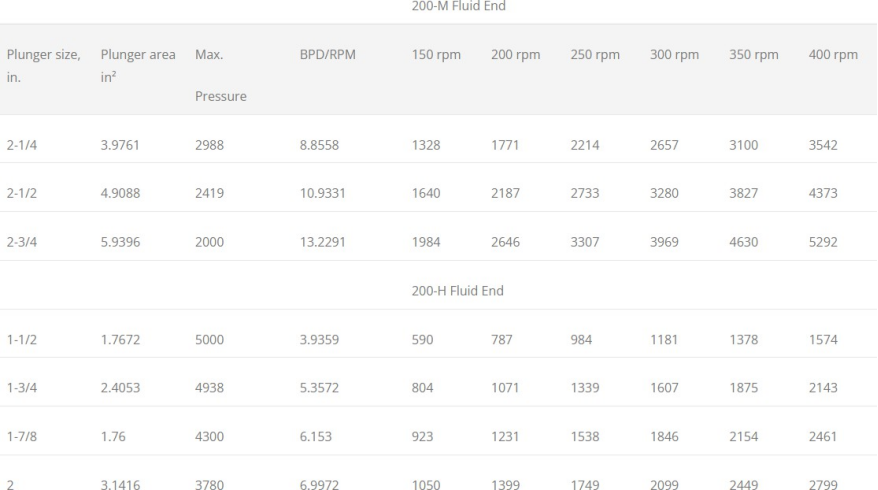

200 Horsepower Triplex Pump:
- Stroke Length: 5″
- Rated: 200 horsepower at 400 rpm
- Rated Plunger Load (lbs.): 11870 lbs
- M Fluid End:
- Suction: 4″ ANSI 150# FF
- Discharge: 2″ API 5000# RTJ
- H Fluid End:
- Suction: 3″ API 2000# RTJ
- Discharge: 2″ API 5000# RTJ
