Apex , Well Testing has developed its own set of fabrication specifications to ensure that equipment used by Apex Petroleum Services, Well Testing meets or exceeds all local requirements. Apex Petroleum Services, Well Testing specifications are primarily based on the following worldwide recognised specifications:

Equipment Design and Fabrication Specifications

  • API Spec 6A – Specification for Valves and Wellhead Equipment
  • ASME VIII For construction of pressure vessels , Div 1&2
  • API RP 14C – Recommended Practice for Analysis, Design, Installation, and Testing of Basic Surface Safety Systems on Offshore Production Platforms
  • NACE MR-01-75
  • Product Specification Level (PSL) 3
  • Material Class DD
  • Temperature Class P&X (-20° F to +350° F)
Talk to an expert

Target Block

TECHNICAL DETAILS

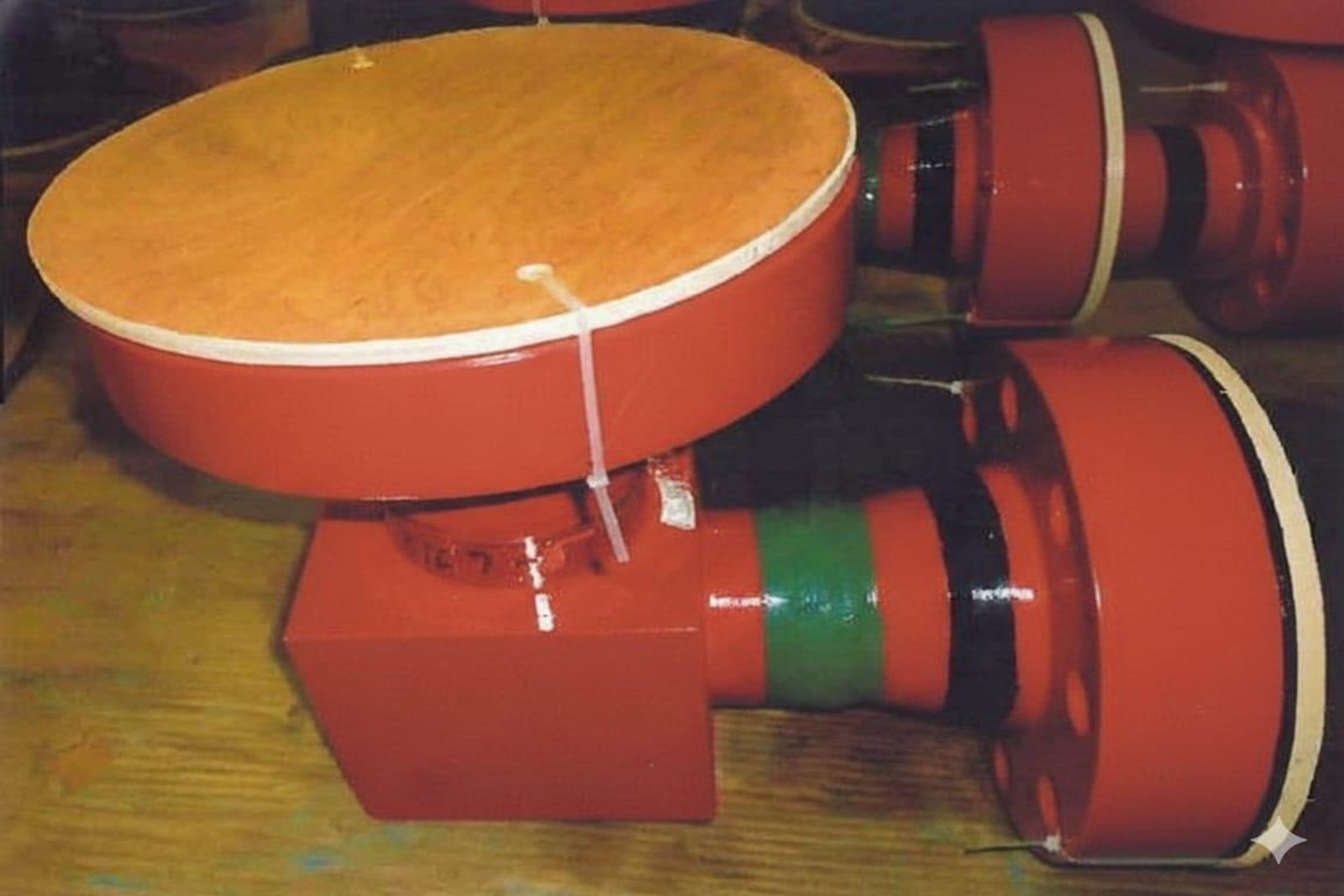

DescriptionTarget Block elbow , 3-1/16” 10k BX154 Flange x 3-1/16” 10k BX154 Flange @90 deg elbowc/w Inconel 625 inlayed ring grooves , PSL3
ServiceH2S
Pressure Rating10000 PSI WP. T.P = 15000 PSI
Material ClassAISI 4130, 75K MYS, NACE compliant
Temperature ClassP+U (-20 F to 250 F )
