Apex

Well Test Laboratory

Apex , Well Testing has developed its own set of fabrication specifications to ensure that equipment used by Apex Petroleum Services, Well Testing meets or exceeds all local requirements. Apex Petroleum Services, Well Testing specifications are primarily based on the following worldwide recognised specifications:

Equipment Design and Fabrication Specifications

  • API Spec 6A – Specification for Valves and Wellhead Equipment
  • ASME VIII For construction of pressure vessels , Div 1&2
  • API RP 14C – Recommended Practice for Analysis, Design, Installation, and Testing of Basic Surface Safety Systems on Offshore Production Platforms
  • NACE MR-01-75
  • Product Specification Level (PSL) 3
  • Material Class DD
  • Temperature Class P&X (-20° F to +350° F)
Talk to an expert

Well Test Laboratory

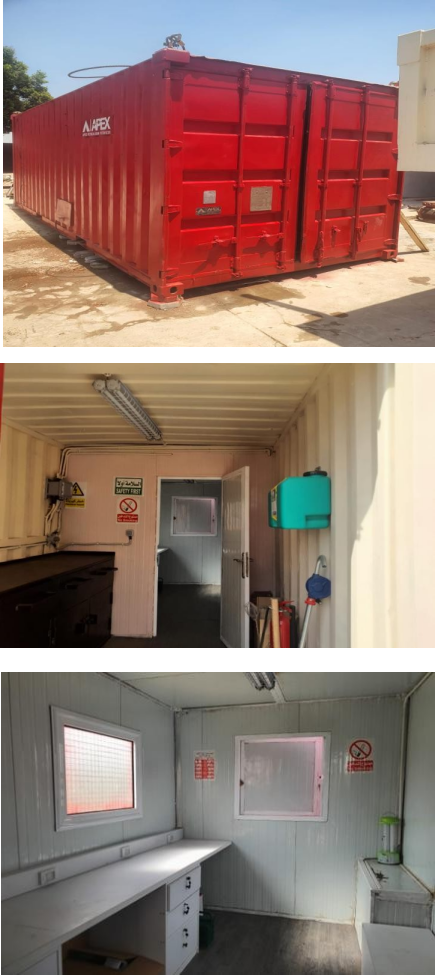

Our Safe Area Portable Well Test Laboratory is purpose-built for accurate data acquisition and well production analysis in non-hazardous environments. Designed to serve as a fully functional office, workshop, and storage facility, the lab is constructed to A60/DNV 2.7-1 standards, ensuring safety, mobility, and operational efficiency.

Applications:

  • Onshore and offshore oil and gas well testing and clean-up operations

Key features include:

  • Integrated climate control (air conditioning and heating) for optimal internal conditions in any ambient environment
  • Uninterruptible power supply (UPS) to protect critical data acquisition systems from power interruptions or extreme temperatures
  • Comprehensive field fluid analysis equipment, including tools for gas gravity, BS&W, salinity, and more

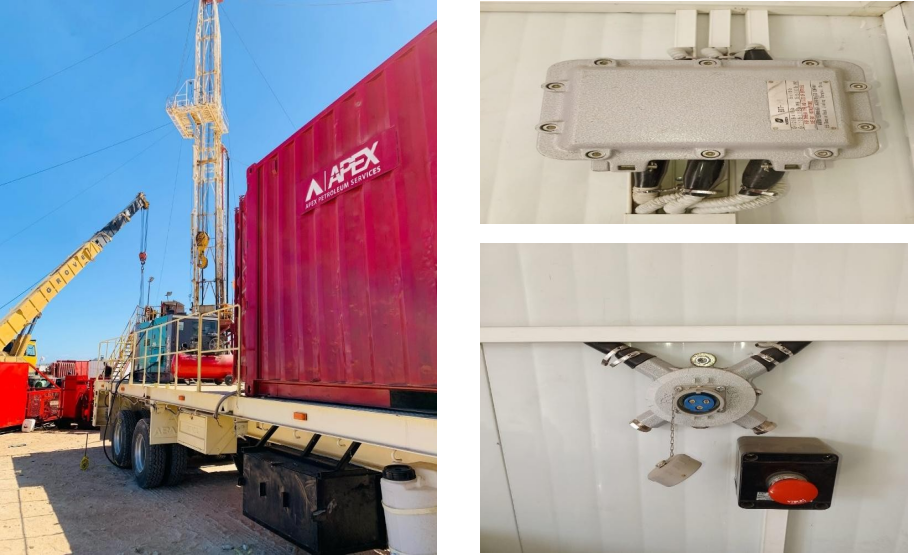

  • Explosion-proof electrical components, including all plugs, junction boxes, and lighting, for added operational safety
  • Instrument calibration systems to ensure consistent accuracy throughout extended testing campaigns
  • Labs include gas and smoke detectors

This self-contained unit delivers everything needed for reliable and efficient well testing operations — all in a secure, controlled, and compliant environment.

Technical Specifications

  • Unit Construction:
    ISO series 1 cc container, 10-gauge corrugated steel.
  • Climate Control:
    1 Air conditioner (13,000 BTUH cooling, 10,700 BTUH heating)
  • Gas Detection:
    Alarm/electronic shut-down H2S, combustible smoke.
  • Weight (kgs):
    620
  • Dimensions (L x W x H) (m):
    6.06 x 2.44 x 2.6

Note:
Other sizes and configurations are available to meet most applications. For more information, contact your local Apex Petroleum Services representative.
